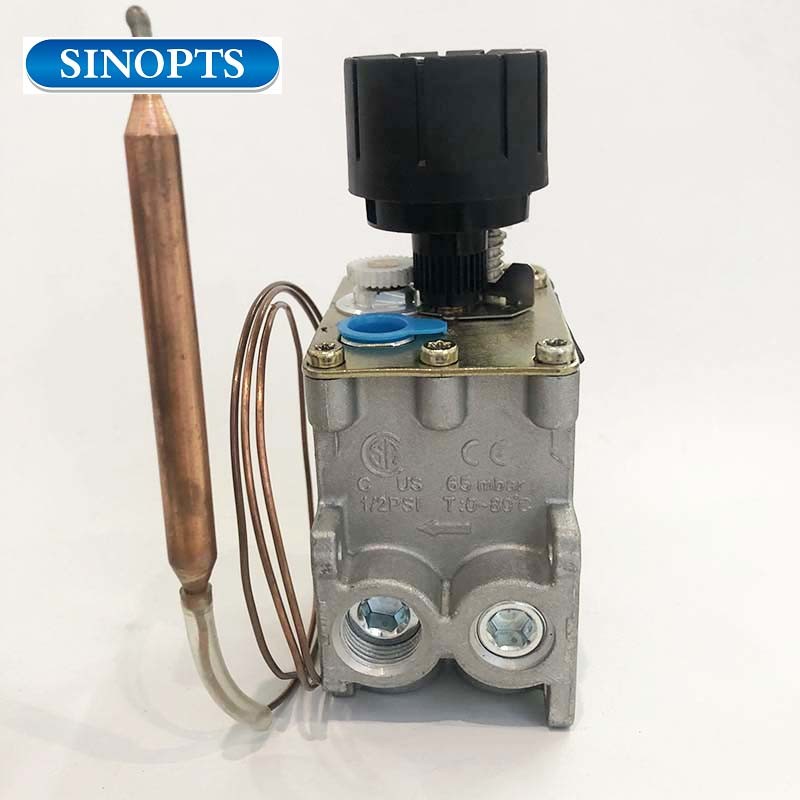

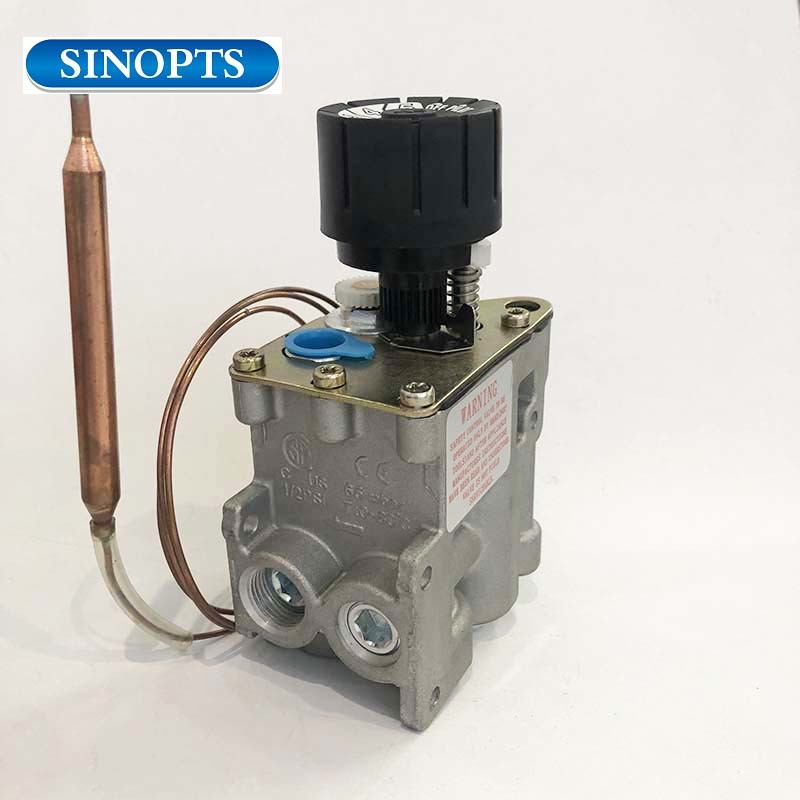

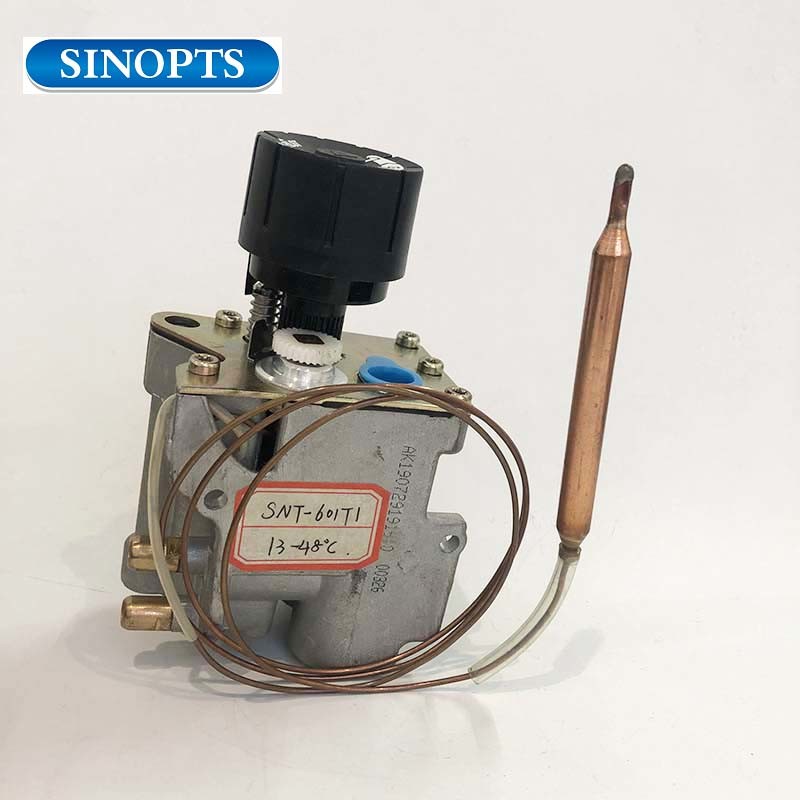

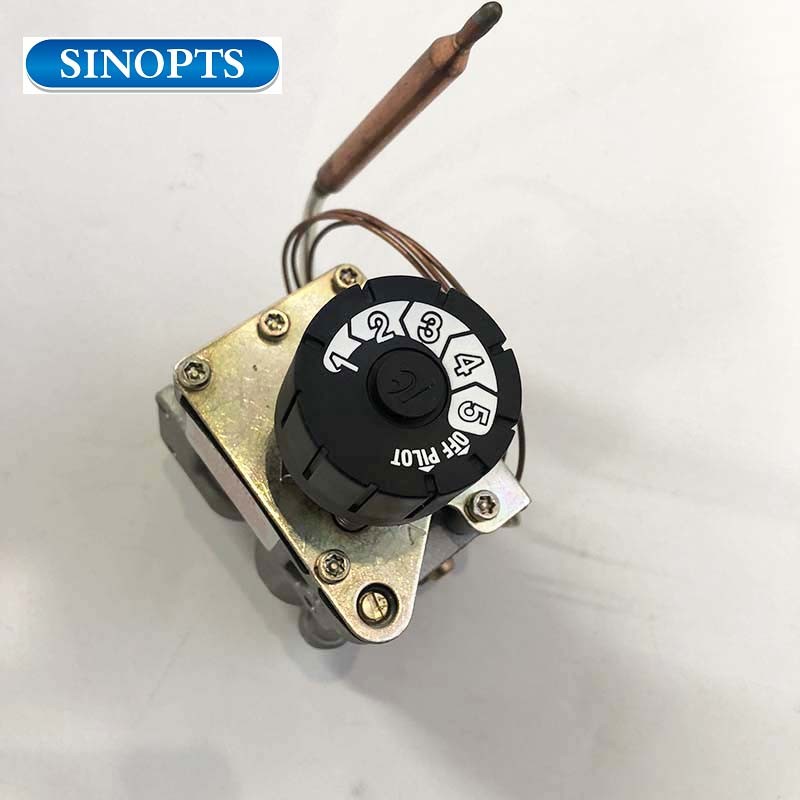

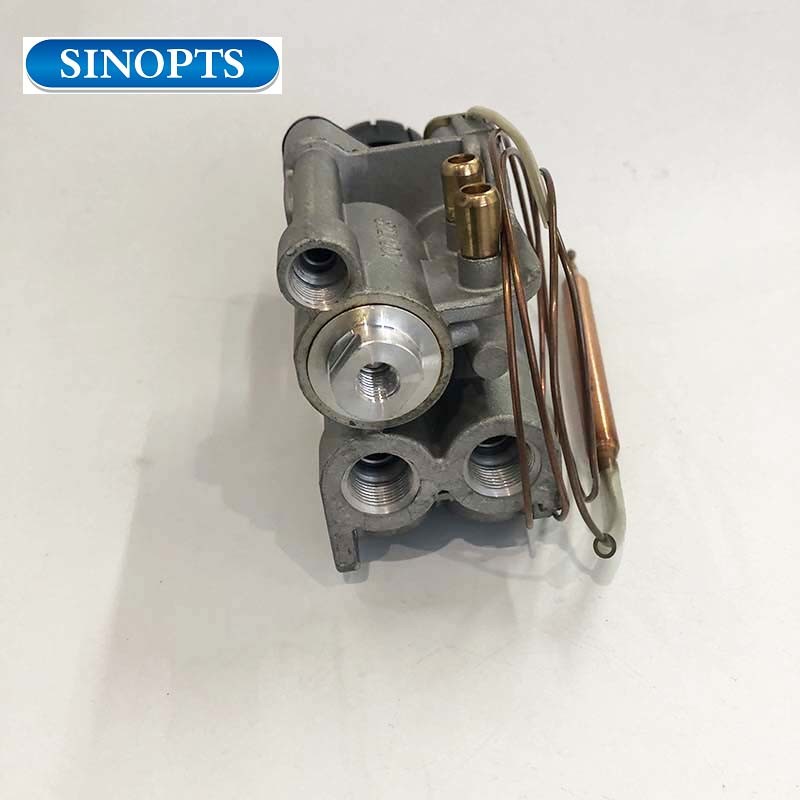

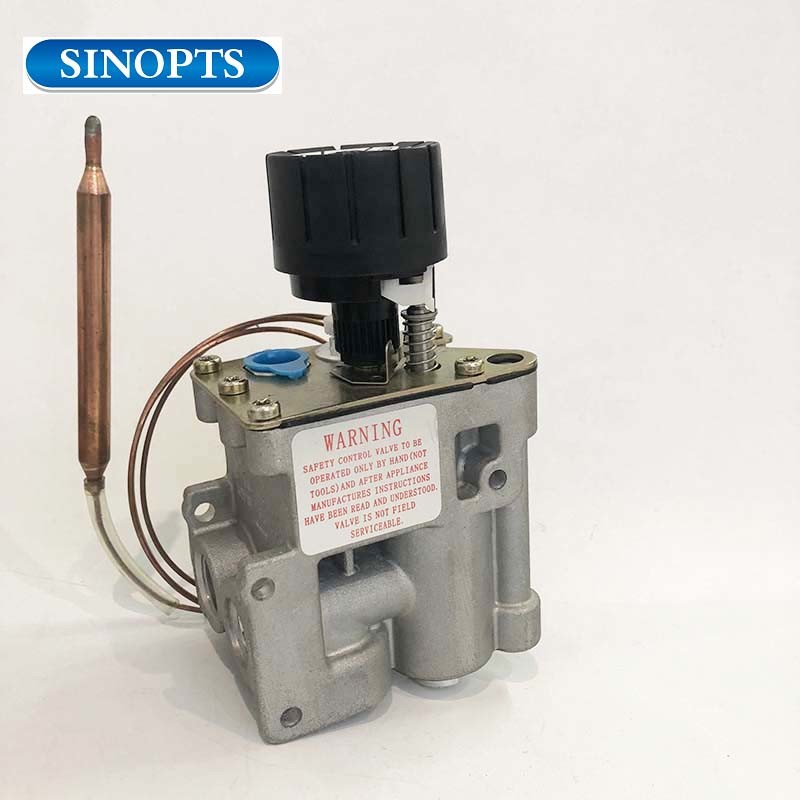

Thermostatic Gas Control Valve Oversea Popular

Model NO. : SNT-601T1

Trademark : sinopts

Origin : China

Certification : CE

Type : Thermostatic Gas Control Valve

Material : Plastic and Copper

Form : Spiral Heating Element

Shape : Square

Transport Package : Wooden Box or Carton Box

Samples : US$ 100/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

Contact Now

Product Description

Company Information
Thermostatic Gas Control Valve Oversea Popular

Product Description

Main features
1. The main control knob is closed, always open flame and temperature adjustment (MS) position
2. Flame inspection thermocouple device, and with the function of preventing new start after the fire. (GM)
3. Maximum output air volume adjustment (RO), or
4. Output pressure regulator (PR)
5. Minimum (bypass) air volume adjustment
6. Thermistor (TH) with switch function
7. Normal open flame outlet (RO) with preset air volume adjustment device
8. Air intake and open flame filter (FL)
9. Pressure monitoring holes at the air inlet and outlet
10. The main air inlet and outlet on both sides of the valve or at the bottom of the valve
11. The main air pipe interface is threaded pipe body or national cone pipe

Technical parameter

Pressure inlet max 50mbar

Pressure outlet 3-18mbar

Suitable for all gas

T amb. 0-80 degree
